Berikut adalah cara mengirim data :
1. Arduino + Ethernet Shield
2. Program Arduino IDE
#include <SPI.h>
#include <Ethernet.h>
int pgigi = 10 ;
int pumum = 9 ;
int petugas = 7 ;
int petugas1 = 5;
int y;
int currx;
String txData="";
byte mac[] = {
0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };
//char server[] = "www.xyz.com";
IPAddress ip(192,168,1,99);
EthernetClient client;
void setup() {
Serial.begin(9600);
while (!Serial) {
; //wait for serial port to connect. Needed for Leonardo only
}
// if (Ethernet.begin(mac) == 0) {
// Serial.println("Failed to configure Ethernet using DHCP");
Ethernet.begin(mac, ip);
// }
delay(1000);
Serial.println("connecting...");
kirim ();
}
void loop()
{
kirim ();
}
void kirim (){
pgigi++;
petugas++;
pumum++;
petugas1++;
EthernetClient client;
//if (client.connect(server, 80)){
if (client.connect("192.168.1.111", 80)){
txData = "pgigi="+ (String (pgigi)) + "&petugas="+ (String (petugas)) + "&pumum="+ (String (pumum)) + "&petugas1="+ (String (petugas1));
Serial.println("connected");
Serial.print(txData);
client.println("POST /antri/update1.php HTTP/1.1");
//jika menggunakan insert pakai client.println("POST /antri/insert.php HTTP/1.1");
client.println("Host: 192,168,1,111");
client.println("Connection: close");
client.print("Content-Type: application/x-www-form-urlencoded\n");
client.print("Content-Length: ");
client.print(txData.length());
client.print("\n\n");
client.print(txData);
Serial.println(txData);
delay (1000);
}
else{
Serial.println("Connection Failed.");
Serial.println();
delay (1500);
}
}
3. File config1.php
<?php
$dbhost = 'localhost';
$dbuser = 'root';
//$dbpass = '';
$dbname = 'coba'; //This is the name of your database on the mysql server
$conn = mysql_connect($dbhost,$dbuser) or die ('Error connecting to mysql');
mysql_select_db($dbname);
if(!$conn){
echo "database gak konek";
}else{
echo "database konek";
}
?>
4. File update1.php
<?php
require("config1.php");
$query = "UPDATE tbcoba SET pgigi='$_POST[pgigi]', petugas='$_POST[petugas]', pumum='$_POST[pumum]', petugas1='$_POST[petugas1]' WHERE no=1";
if(!@mysql_query($query))
{
echo "&Answer; SQL Error - ".mysql_error();
return;
}
?>
5. File insert.php
<?php
require("config1.php");
$query = "INSERT INTO tbcoba (pgigi, petugas, pumum, petugas1) VALUES('$_POST[pgigi]','$_POST[petugas]','$_POST[pumum]','$_POST[petugas1]')";
if(!@mysql_query($query))
{
echo "&Answer; SQL Error - ".mysql_error();
return;
}
?>
6. Cara Penggunaan Alat
a. Pertama ketik file.update1.php dan config1.php
b. Simpan di C:\xampp\htdocs\antri\ (buat folder antri)
c. Setelah itu ketik program Arduino Uno dan Upload
d. Jadikan IP komputer / laptop static dan set ke IP = 192.168.1.111 dan subnet mask = 255.255.255.0
e. Pastikan IP router satu kelas dengan IP komputer dan IP Arduino
f. Buka PhpmyAdmin dan buat database berikut
- Nama Database = coba
- Nama Tabel = tbcoba
- Coloum Tabel = 5
>> Coloum1 = no
>> Coloum2 = pgigi
>> Coloum3 = petugas
>> Coloum4 = pumum
>> Coloum5 = petugas1
>> semua dalam bentuk INT (integer)
g. Masukkan data pertama, klik menu insert di phpmyadmin kemudian masukkan data berikut
>> no = 1 (maksudnya isikan value dengan nilai 1)
>> pgigi = 2
>> petugas = 3
>> pumum = 4
>> petugas1 = 5
h. Hidupkan XAMPP, aktifkan apache dan MySQL

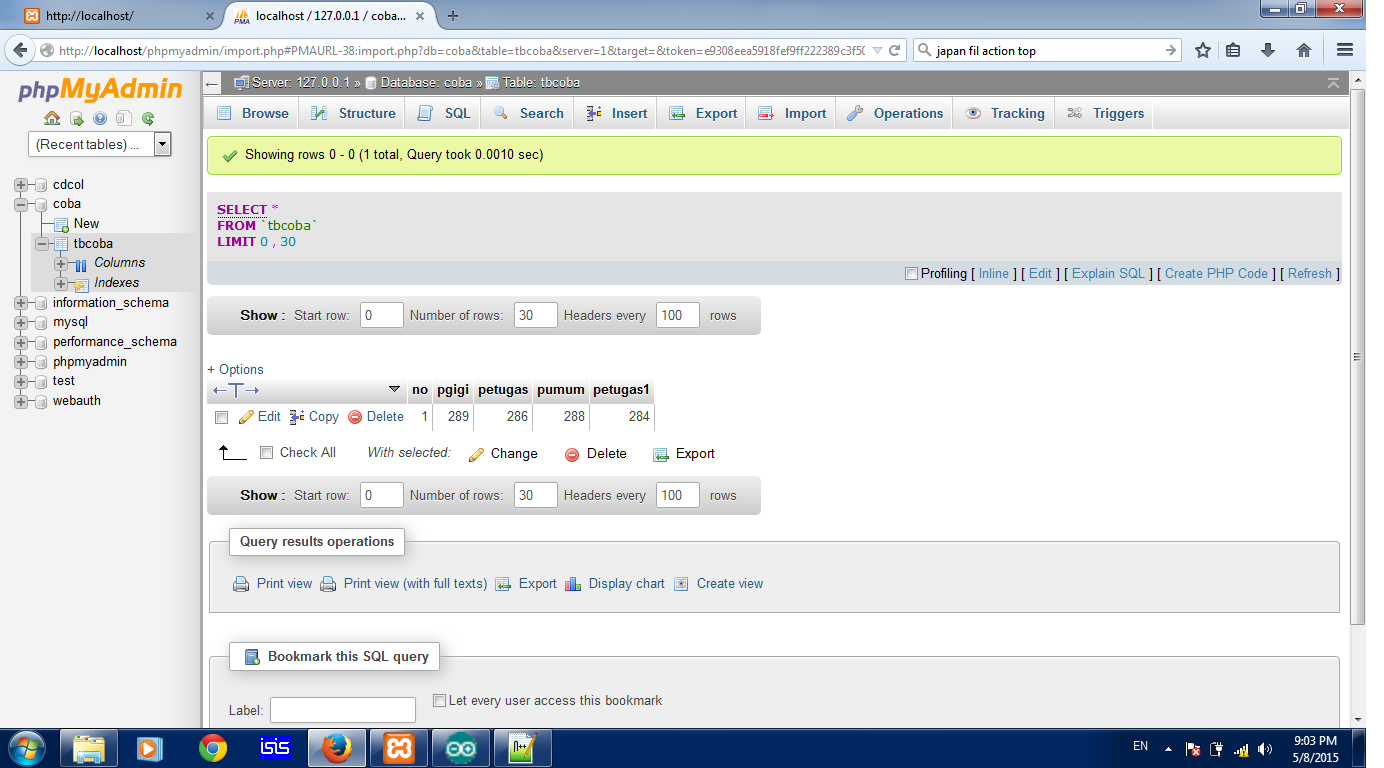

i. kemudian hidupkan Arduinonya dan lihat apa yang tersimpan di database
